Designing your own entities with vertex arrays

Introduction

SFML provides simple classes for the most common 2D entities. And while more complex entities can easily be created from these building blocks, it isn't always the most efficient solution. For example, you'll reach the limits of your graphics card very quickly if you draw a large number of sprites. The reason is that performance depends in large part on the number of calls to the draw function. Indeed, each call involves setting a set of OpenGL states, resetting matrices, changing textures, etc. All of this is required even when simply drawing two triangles (a sprite). This is far from optimal for your graphics card: Today's GPUs are designed to process large batches of triangles, typically several thousand to millions.

To fill this gap, SFML provides a lower-level mechanism to draw things: Vertex arrays. As a matter of fact, vertex arrays are used internally by all other SFML classes. They allow for a more flexible definition of 2D entities, containing as many triangles as you need. They even allow drawing points or lines.

What is a vertex, and why are they always in arrays?

A vertex is the smallest graphical entity that you can manipulate. In short, it is a graphical point: Naturally, it has a 2D position (x, y) but also a color and a pair of texture coordinates. We'll go into the roles of these attributes later.

Vertices alone don't do much. They are always grouped into primitives: Points (1 vertex), lines (2 vertices), or triangles (3 vertices). You can then combine multiple primitives together to create the final geometry of the entity.

Now you understand why we always talk about vertex arrays, and not vertices alone.

A simple vertex array

Let's have a look at the sf::Vertex class now. It's simply an aggregate type which contains three public members.

// create a new vertex
sf::Vertex vertex;

// set its position
vertex.position = sf::Vector2f(10.f, 50.f);

// set its color
vertex.color = sf::Color::Red;

// set its texture coordinates
vertex.texCoords = sf::Vector2f(100.f, 100.f);

... or, using aggregate initialization:

sf::Vertex vertex{{10.f, 50.f}, sf::Color::Red, {100.f, 100.f}};

Now, let's define a primitive. Remember, a primitive consists of several vertices, therefore we need a vertex array. SFML provides a simple wrapper for this: sf::VertexArray. It provides the semantics of an array (similar to std::vector), and also stores the type of primitive its vertices define.

// create an array of 3 vertices that define a triangle primitive
sf::VertexArray triangle(sf::PrimitiveType::Triangles, 3);

// define the position of the triangle's points
triangle[0].position = sf::Vector2f(10.f, 10.f);
triangle[1].position = sf::Vector2f(100.f, 10.f);
triangle[2].position = sf::Vector2f(100.f, 100.f);

// define the color of the triangle's points
triangle[0].color = sf::Color::Red;
triangle[1].color = sf::Color::Blue;
triangle[2].color = sf::Color::Green;

// no texture coordinates here, we'll see that later

Your triangle is ready and you can now draw it. Drawing a vertex array can be done similarly to drawing any other SFML entity, by using the draw function:

window.draw(triangle);

You can see that the vertices' color is interpolated to fill the primitive. This is a nice way of creating gradients.

Note that you don't have to use the sf::VertexArray class. It's just defined for convenience, it's nothing more than a std::vector<sf::Vertex> along with an sf::PrimitiveType. If you need more flexibility, or a static array, you can use your own storage. You must then use the overload of the draw function which takes a pointer to the vertices, the vertex count and the primitive type.

std::vector<sf::Vertex> vertices;
vertices.push_back(sf::Vertex{...});
...

window.draw(vertices.data(), vertices.size(), sf::PrimitiveType::Triangles);

std::array vertices =
{
    sf::Vertex{...},
    sf::Vertex{...}
};

window.draw(vertices.data(), vertices.size(), sf::PrimitiveType::Lines);

Primitive types

Let's pause for a while and see what kind of primitives you can create. As explained above, you can define the most basic 2D primitives: Point, line, and triangle. There are also "chained" variants of these primitive types which allow for sharing of vertices among two consecutive primitives. This can be useful because consecutive primitives are often connected in some way.

Let's have a look at the full list:

Primitive type	Description	Example
sf::PrimitiveType::Points	A set of unconnected points. These points have no thickness: They will always occupy a single pixel, regardless of the current transform and view.
sf::PrimitiveType::Lines	A set of unconnected lines. These lines have no thickness: They will always be one pixel wide, regardless of the current transform and view.
sf::PrimitiveType::LineStrip	A set of connected lines. The end vertex of one line is used as the start vertex of the next one.
sf::PrimitiveType::Triangles	A set of unconnected triangles.

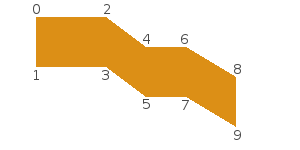

sf::PrimitiveType::TriangleStrip	A set of connected triangles. Each triangle shares its two last vertices with the next one.
sf::PrimitiveType::TriangleFan	A set of triangles connected to a central point. The first vertex is the center, then each new vertex defines a new triangle, using the center and the previous vertex.

Texturing

Like other SFML entities, vertex arrays can also be textured. To do so, you'll need to manipulate the texCoords attribute of the vertices. This attribute defines which pixel of the texture is mapped to the vertex.

// create a triangle strip
sf::VertexArray triangleStrip(sf::PrimitiveType::TriangleStrip, 4);

// define it as a rectangle, located at (10, 10) and with size 100x100
triangleStrip[0].position = sf::Vector2f(10.f, 10.f);
triangleStrip[1].position = sf::Vector2f(10.f, 110.f);
triangleStrip[2].position = sf::Vector2f(110.f, 10.f);
triangleStrip[3].position = sf::Vector2f(110.f, 110.f);

// define its texture area to be a 25x50 rectangle starting at (0, 0)
triangleStrip[0].texCoords = sf::Vector2f(0.f, 0.f);
triangleStrip[1].texCoords = sf::Vector2f(0.f, 50.f);
triangleStrip[2].texCoords = sf::Vector2f(25.f, 0.f);
triangleStrip[3].texCoords = sf::Vector2f(25.f, 50.f);

Texture coordinates are defined in pixels (just like the textureRect of sprites and shapes). They are not normalized (between 0 and 1), as people who are used to OpenGL programming might expect.

Vertex arrays are low-level entities, they only deal with geometry and do not store additional attributes like a texture. To draw a vertex array with a texture, you must pass it directly to the draw function:

sf::VertexArray vertices;
sf::Texture texture;

...

window.draw(vertices, &texture);

This is the short version, if you need to pass other render states (like a blend mode or a transform), you can use the explicit version which takes a sf::RenderStates object:

sf::VertexArray vertices;
sf::Texture texture;

...

sf::RenderStates states;
states.texture = &texture;

window.draw(vertices, states);

Transforming a vertex array

Transforming is similar to texturing. The transform is not stored in the vertex array, you must pass it to the draw function.

sf::VertexArray vertices;
sf::Transform transform;

...

window.draw(vertices, transform);

Or, if you need to pass other render states:

sf::VertexArray vertices;
sf::Transform transform;

...

sf::RenderStates states;
states.transform = transform;

window.draw(vertices, states);

To know more about transformations and the sf::Transform class, you can read the tutorial on transforming entities.

Creating an SFML-like entity

Now that you know how to define your own textured/colored/transformed entity, wouldn't it be nice to wrap it in an SFML-style class? Fortunately, SFML makes this easy for you by providing the sf::Drawable and sf::Transformable base classes. These two classes are the base of the built-in SFML entities sf::Sprite, sf::Text and sf::Shape.

sf::Drawable is an interface: It declares a single pure virtual function and has no members nor concrete functions. Inheriting from sf::Drawable allows you to draw instances of your class the same way as SFML classes:

class MyEntity : public sf::Drawable
{
private:
    void draw(sf::RenderTarget& target, sf::RenderStates states) const override;
};

MyEntity entity;
window.draw(entity); // internally calls entity.draw

Note that doing this is not mandatory, you could also just have a similar draw function in your class and simply call it with entity.draw(window). But the other way, with sf::Drawable as a base class, is nicer and more consistent. This also means that if you plan on storing an array of drawable objects, you can do it without any additional effort since all drawable objects (SFML's and yours) derive from the same class.

The other base class, sf::Transformable, has no virtual function. Inheriting from it automatically adds the same transformation functions to your class as other SFML classes (setPosition, setRotation, move, scale, ...). You can learn more about this class in the tutorial on transforming entities.

Using these two base classes and a vertex array (in this example we'll also add a texture), here is what a typical SFML-like graphical class would look like:

class MyEntity : public sf::Drawable, public sf::Transformable
{
public:
    // add functions to play with the entity's geometry / colors / texturing...

private:
    void draw(sf::RenderTarget& target, sf::RenderStates states) const override
    {
        // apply the entity's transform -- combine it with the one that was passed by the caller
        states.transform *= getTransform(); // getTransform() is defined by sf::Transformable

        // apply the texture
        states.texture = &m_texture;

        // you may also override states.shader or states.blendMode if you want

        // draw the vertex array
        target.draw(m_vertices, states);
    }

    sf::VertexArray m_vertices;
    sf::Texture     m_texture;
};

You can then use this class as if it were a built-in SFML class:

MyEntity entity;

// you can transform it
entity.setPosition({10.f, 50.f});
entity.setRotation(sf::degrees(45));

// you can draw it
window.draw(entity);

Example: tile map

With what we've seen above, let's create a class that encapsulates a tile map. The whole map will be contained in a single vertex array, therefore it will be super fast to draw. Note that we can apply this strategy only if the whole tile set can fit into a single texture. Otherwise, we would have to use at least one vertex array per texture.

class TileMap : public sf::Drawable, public sf::Transformable
{
public:
    bool load(const std::filesystem::path& tileset, sf::Vector2u tileSize, const int* tiles, unsigned int width, unsigned int height)
    {
        // load the tileset texture
        if (!m_tileset.loadFromFile(tileset))
            return false;

        // resize the vertex array to fit the level size
        m_vertices.setPrimitiveType(sf::PrimitiveType::Triangles);
        m_vertices.resize(width * height * 6);

        // populate the vertex array, with two triangles per tile
        for (unsigned int i = 0; i < width; ++i)
        {
            for (unsigned int j = 0; j < height; ++j)
            {
                // get the current tile number
                const int tileNumber = tiles[i + j * width];

                // find its position in the tileset texture
                const int tu = tileNumber % (m_tileset.getSize().x / tileSize.x);
                const int tv = tileNumber / (m_tileset.getSize().x / tileSize.x);

                // get a pointer to the triangles' vertices of the current tile
                sf::Vertex* triangles = &m_vertices[(i + j * width) * 6];

                // define the 6 corners of the two triangles
                triangles[0].position = sf::Vector2f(i * tileSize.x, j * tileSize.y);
                triangles[1].position = sf::Vector2f((i + 1) * tileSize.x, j * tileSize.y);
                triangles[2].position = sf::Vector2f(i * tileSize.x, (j + 1) * tileSize.y);
                triangles[3].position = sf::Vector2f(i * tileSize.x, (j + 1) * tileSize.y);
                triangles[4].position = sf::Vector2f((i + 1) * tileSize.x, j * tileSize.y);
                triangles[5].position = sf::Vector2f((i + 1) * tileSize.x, (j + 1) * tileSize.y);

                // define the 6 matching texture coordinates
                triangles[0].texCoords = sf::Vector2f(tu * tileSize.x, tv * tileSize.y);
                triangles[1].texCoords = sf::Vector2f((tu + 1) * tileSize.x, tv * tileSize.y);
                triangles[2].texCoords = sf::Vector2f(tu * tileSize.x, (tv + 1) * tileSize.y);
                triangles[3].texCoords = sf::Vector2f(tu * tileSize.x, (tv + 1) * tileSize.y);
                triangles[4].texCoords = sf::Vector2f((tu + 1) * tileSize.x, tv * tileSize.y);
                triangles[5].texCoords = sf::Vector2f((tu + 1) * tileSize.x, (tv + 1) * tileSize.y);
            }
        }

        return true;
    }

private:
    void draw(sf::RenderTarget& target, sf::RenderStates states) const override
    {
        // apply the transform
        states.transform *= getTransform();

        // apply the tileset texture
        states.texture = &m_tileset;

        // draw the vertex array
        target.draw(m_vertices, states);
    }

    sf::VertexArray m_vertices;
    sf::Texture     m_tileset;
};

And now, the application that uses it:

int main()
{
    // create the window
    sf::RenderWindow window(sf::VideoMode({512, 256}), "Tilemap");

    // define the level with an array of tile indices
    constexpr std::array level = {
        0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
        0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 2, 0, 0, 0, 0,
        1, 1, 0, 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3,
        0, 1, 0, 0, 2, 0, 3, 3, 3, 0, 1, 1, 1, 0, 0, 0,
        0, 1, 1, 0, 3, 3, 3, 0, 0, 0, 1, 1, 1, 2, 0, 0,
        0, 0, 1, 0, 3, 0, 2, 2, 0, 0, 1, 1, 1, 1, 2, 0,
        2, 0, 1, 0, 3, 0, 2, 2, 2, 0, 1, 1, 1, 1, 1, 1,
        0, 0, 1, 0, 3, 2, 2, 2, 0, 0, 0, 0, 1, 1, 1, 1,
    };

    // create the tilemap from the level definition
    TileMap map;
    if (!map.load("tileset.png", {32, 32}, level.data(), 16, 8))
        return -1;

    // run the main loop
    while (window.isOpen())
    {
        // handle events
        while (const std::optional event = window.pollEvent())
        {
            if (event->is<sf::Event::Closed>())
                window.close();
        }

        // draw the map
        window.clear();
        window.draw(map);
        window.display();
    }
}

You can download the tileset used for this tilemap example here.

Example: particle system

This second example implements another common entity: The particle system. This one is very simple, with no texture and as few parameters as possible. It demonstrates the use of the sf::PrimitiveType::Points primitive type with a dynamic vertex array which changes every frame.

class ParticleSystem : public sf::Drawable, public sf::Transformable
{
public:
    ParticleSystem(unsigned int count) : m_particles(count), m_vertices(sf::PrimitiveType::Points, count)
    {
    }

    void setEmitter(sf::Vector2f position)
    {
        m_emitter = position;
    }

    void update(sf::Time elapsed)
    {
        for (std::size_t i = 0; i < m_particles.size(); ++i)
        {
            // update the particle lifetime
            Particle& p = m_particles[i];
            p.lifetime -= elapsed;

            // if the particle is dead, respawn it
            if (p.lifetime <= sf::Time::Zero)
                resetParticle(i);

            // update the position of the corresponding vertex
            m_vertices[i].position += p.velocity * elapsed.asSeconds();

            // update the alpha (transparency) of the particle according to its lifetime
            float ratio           = p.lifetime.asSeconds() / m_lifetime.asSeconds();
            m_vertices[i].color.a = static_cast<std::uint8_t>(ratio * 255);
        }
    }

private:
    void draw(sf::RenderTarget& target, sf::RenderStates states) const override
    {
        // apply the transform
        states.transform *= getTransform();

        // our particles don't use a texture
        states.texture = nullptr;

        // draw the vertex array
        target.draw(m_vertices, states);
    }

    struct Particle
    {
        sf::Vector2f velocity;
        sf::Time     lifetime;
    };

    void resetParticle(std::size_t index)
    {
        // create random number generator
        static std::random_device rd;
        static std::mt19937       rng(rd());

        // give a random velocity and lifetime to the particle
        const sf::Angle angle       = sf::degrees(std::uniform_real_distribution(0.f, 360.f)(rng));
        const float     speed       = std::uniform_real_distribution(50.f, 100.f)(rng);
        m_particles[index].velocity = sf::Vector2f(speed, angle);
        m_particles[index].lifetime = sf::milliseconds(std::uniform_int_distribution(1000, 3000)(rng));

        // reset the position of the corresponding vertex
        m_vertices[index].position = m_emitter;
    }

    std::vector<Particle> m_particles;
    sf::VertexArray       m_vertices;
    sf::Time              m_lifetime{sf::seconds(3)};
    sf::Vector2f          m_emitter;
};

And a little demo that uses it:

int main()
{
    // create the window
    sf::RenderWindow window(sf::VideoMode({512, 256}), "Particles");

    // create the particle system
    ParticleSystem particles(1000);

    // create a clock to track the elapsed time
    sf::Clock clock;

    // run the main loop
    while (window.isOpen())
    {
        // handle events
        while (const std::optional event = window.pollEvent())
        {
            if (event->is<sf::Event::Closed>())
                window.close();
        }

        // make the particle system emitter follow the mouse
        sf::Vector2i mouse = sf::Mouse::getPosition(window);
        particles.setEmitter(window.mapPixelToCoords(mouse));

        // update it
        sf::Time elapsed = clock.restart();
        particles.update(elapsed);

        // draw it
        window.clear();
        window.draw(particles);
        window.display();
    }
}
