Simple wrapper for sf::Window that allows easy 2D rendering. More...

#include <RenderWindow.hpp>

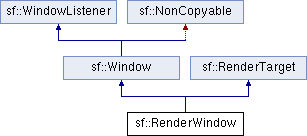

Inheritance diagram for sf::RenderWindow:

Public Member Functions
	RenderWindow ()
	Default constructor.

	RenderWindow (VideoMode Mode, const std::string &Title, unsigned long WindowStyle=Style::Resize\|Style::Close, const WindowSettings &Params=WindowSettings())
	Construct the window.

	RenderWindow (WindowHandle Handle, const WindowSettings &Params=WindowSettings())
	Construct the window from an existing control.

virtual	~RenderWindow ()
	Destructor.

virtual unsigned int	GetWidth () const
	Get the width of the rendering region of the window.

virtual unsigned int	GetHeight () const
	Get the height of the rendering region of the window.

Image	Capture () const
	Save the content of the window to an image.

sf::Vector2f	ConvertCoords (unsigned int WindowX, unsigned int WindowY, const View *TargetView=NULL) const
	Convert a point in window coordinates into view coordinates.

void	Create (VideoMode Mode, const std::string &Title, unsigned long WindowStyle=Style::Resize\|Style::Close, const WindowSettings &Params=WindowSettings())
	Create (or recreate) the window.

void	Create (WindowHandle Handle, const WindowSettings &Params=WindowSettings())
	Create (or recreate) the window from an existing control.

void	Close ()
	Close (destroy) the window.

bool	IsOpened () const
	Tell whether or not the window is opened (ie.

const WindowSettings &	GetSettings () const
	Get the creation settings of the window.

bool	GetEvent (Event &EventReceived)
	Get the event on top of events stack, if any, and pop it.

void	UseVerticalSync (bool Enabled)
	Enable / disable vertical synchronization.

void	ShowMouseCursor (bool Show)
	Show or hide the mouse cursor.

void	SetCursorPosition (unsigned int Left, unsigned int Top)
	Change the position of the mouse cursor.

void	SetPosition (int Left, int Top)
	Change the position of the window on screen.

void	SetSize (unsigned int Width, unsigned int Height)
	Change the size of the rendering region of the window.

void	Show (bool State)
	Show or hide the window.

void	EnableKeyRepeat (bool Enabled)
	Enable or disable automatic key-repeat.

void	SetIcon (unsigned int Width, unsigned int Height, const Uint8 *Pixels)
	Change the window's icon.

bool	SetActive (bool Active=true) const
	Activate of deactivate the window as the current target for rendering.

void	Display ()
	Display the window on screen.

const Input &	GetInput () const
	Get the input manager of the window.

void	SetFramerateLimit (unsigned int Limit)
	Limit the framerate to a maximum fixed frequency.

float	GetFrameTime () const
	Get time elapsed since last frame.

void	SetJoystickThreshold (float Threshold)
	Change the joystick threshold, ie.

void	Clear (const Color &FillColor=Color(0, 0, 0))
	Clear the entire target with a single color.

virtual void	Draw (const Drawable &Object)
	Draw something into the target.

void	SetView (const View &NewView)
	Change the current active view.

const View &	GetView () const
	Get the current view.

View &	GetDefaultView ()
	Get the default view of the window for read / write.

void	PreserveOpenGLStates (bool Preserve)
	Tell SFML to preserve external OpenGL states, at the expense of more CPU charge.

Protected Member Functions
void	Initialize ()
	Called by the derived class when it's ready to be initialized.

Detailed Description

Simple wrapper for sf::Window that allows easy 2D rendering.

Definition at line 45 of file RenderWindow.hpp.

Constructor & Destructor Documentation

sf::RenderWindow::RenderWindow ( )

Default constructor.

sf::RenderWindow::RenderWindow	(	VideoMode	Mode,
		const std::string &	Title,
		unsigned long	WindowStyle = `Style::Resize\|Style::Close`,
		const WindowSettings &	Params = `WindowSettings()`
	)

Construct the window.

Parameters

Mode	: Video mode to use
Title	: Title of the window
WindowStyle	: Window style, see sf::Style (Resize \| Close by default)
Params	: Creation parameters (see default constructor for default values)

sf::RenderWindow::RenderWindow	(	WindowHandle	Handle,
		const WindowSettings &	Params = `WindowSettings()`
	)

Construct the window from an existing control.

Parameters

Handle	: Platform-specific handle of the control
Params	: Creation parameters (see default constructor for default values)

virtual sf::RenderWindow::~RenderWindow ( )

virtual

Destructor.

Member Function Documentation

Image sf::RenderWindow::Capture ( ) const

Save the content of the window to an image.

Returns: Image instance containing the contents of the screen

void sf::RenderTarget::Clear ( const Color & FillColor = Color(0, 0, 0) )

inherited

Clear the entire target with a single color.

Parameters

FillColor : Color to use to clear the render target

void sf::Window::Close ( )

inherited

Close (destroy) the window.

The sf::Window instance remains valid and you can call Create to recreate the window

sf::Vector2f sf::RenderWindow::ConvertCoords	(	unsigned int	WindowX,
		unsigned int	WindowY,
		const View *	TargetView = `NULL`
	)		const

Convert a point in window coordinates into view coordinates.

Parameters

WindowX	: X coordinate of the point to convert, relative to the window
WindowY	: Y coordinate of the point to convert, relative to the window
TargetView	: Target view to convert the point to (NULL by default – uses the current view)

Returns: Converted point

void sf::Window::Create	(	VideoMode	Mode,
		const std::string &	Title,
		unsigned long	WindowStyle = `Style::Resize\|Style::Close`,
		const WindowSettings &	Params = `WindowSettings()`
	)

inherited

Create (or recreate) the window.

Parameters

Mode	: Video mode to use
Title	: Title of the window
WindowStyle	: Window style, see sf::Style (Resize \| Close by default)
Params	: Creation parameters (see default constructor for default values)

void sf::Window::Create	(	WindowHandle	Handle,
		const WindowSettings &	Params = `WindowSettings()`
	)

inherited

Create (or recreate) the window from an existing control.

Parameters

Handle	: Platform-specific handle of the control
Params	: Creation parameters (see default constructor for default values)

void sf::Window::Display ( )

inherited

Display the window on screen.

virtual void sf::RenderTarget::Draw ( const Drawable & Object )

virtualinherited

Draw something into the target.

Parameters

Object : Object to draw

void sf::Window::EnableKeyRepeat ( bool Enabled )

inherited

Enable or disable automatic key-repeat.

Automatic key-repeat is enabled by default

Parameters

Enabled : True to enable, false to disable

View& sf::RenderTarget::GetDefaultView ( )

inherited

Get the default view of the window for read / write.

Returns: Default view

bool sf::Window::GetEvent ( Event & EventReceived )

inherited

Get the event on top of events stack, if any, and pop it.

Parameters

EventReceived : Event to fill, if any

Returns: True if an event was returned, false if events stack was empty

float sf::Window::GetFrameTime ( ) const

inherited

Get time elapsed since last frame.

Returns: Time elapsed, in seconds

virtual unsigned int sf::RenderWindow::GetHeight ( ) const

virtual

Get the height of the rendering region of the window.

Returns: Height in pixels

Implements sf::RenderTarget.

const Input& sf::Window::GetInput ( ) const

inherited

Get the input manager of the window.

Returns: Reference to the input

const WindowSettings& sf::Window::GetSettings ( ) const

inherited

Get the creation settings of the window.

Returns: Structure containing the creation settings

const View& sf::RenderTarget::GetView ( ) const

inherited

Get the current view.

Returns: Current view active in the window

virtual unsigned int sf::RenderWindow::GetWidth ( ) const

virtual

Get the width of the rendering region of the window.

Returns: Width in pixels

Implements sf::RenderTarget.

void sf::RenderTarget::Initialize ( )

protectedinherited

Called by the derived class when it's ready to be initialized.

bool sf::Window::IsOpened ( ) const

inherited

Tell whether or not the window is opened (ie.

has been created). Note that a hidden window (Show(false)) will still return true

Returns: True if the window is opened

void sf::RenderTarget::PreserveOpenGLStates ( bool Preserve )

inherited

Tell SFML to preserve external OpenGL states, at the expense of more CPU charge.

Use this function if you don't want SFML to mess up your own OpenGL states (if any). Don't enable state preservation if not needed, as it will allow SFML to do internal optimizations and improve performances. This parameter is false by default

Parameters

Preserve : True to preserve OpenGL states, false to let SFML optimize

bool sf::Window::SetActive ( bool Active = true ) const

inherited

Activate of deactivate the window as the current target for rendering.

Parameters

Active : True to activate, false to deactivate (true by default)

Returns: True if operation was successful, false otherwise

void sf::Window::SetCursorPosition	(	unsigned int	Left,
		unsigned int	Top
	)

inherited

Change the position of the mouse cursor.

Parameters

Left	: Left coordinate of the cursor, relative to the window
Top	: Top coordinate of the cursor, relative to the window

void sf::Window::SetFramerateLimit ( unsigned int Limit )

inherited

Limit the framerate to a maximum fixed frequency.

Parameters

Limit : Framerate limit, in frames per seconds (use 0 to disable limit)

void sf::Window::SetIcon	(	unsigned int	Width,
		unsigned int	Height,
		const Uint8 *	Pixels
	)

inherited

Change the window's icon.

Parameters

Width	: Icon's width, in pixels
Height	: Icon's height, in pixels
Pixels	: Pointer to the pixels in memory, format must be RGBA 32 bits

void sf::Window::SetJoystickThreshold ( float Threshold )

inherited

Change the joystick threshold, ie.

the value below which no move event will be generated

Parameters

Threshold : New threshold, in range [0, 100]

void sf::Window::SetPosition	(	int	Left,
		int	Top
	)

inherited

Change the position of the window on screen.

Only works for top-level windows

Parameters

Left	: Left position
Top	: Top position

void sf::Window::SetSize	(	unsigned int	Width,
		unsigned int	Height
	)

inherited

Change the size of the rendering region of the window.

Parameters

Width	: New width
Height	: New height

void sf::RenderTarget::SetView ( const View & NewView )

inherited

Change the current active view.

Parameters

NewView : New view to use (pass GetDefaultView() to set the default view)

void sf::Window::Show ( bool State )

inherited

Show or hide the window.

Parameters

State : True to show, false to hide

void sf::Window::ShowMouseCursor ( bool Show )

inherited

Show or hide the mouse cursor.

Parameters

Show	: True to show, false to hide

void sf::Window::UseVerticalSync ( bool Enabled )

inherited

Enable / disable vertical synchronization.

Parameters

Enabled : True to enable v-sync, false to deactivate

The documentation for this class was generated from the following file:

RenderWindow.hpp
